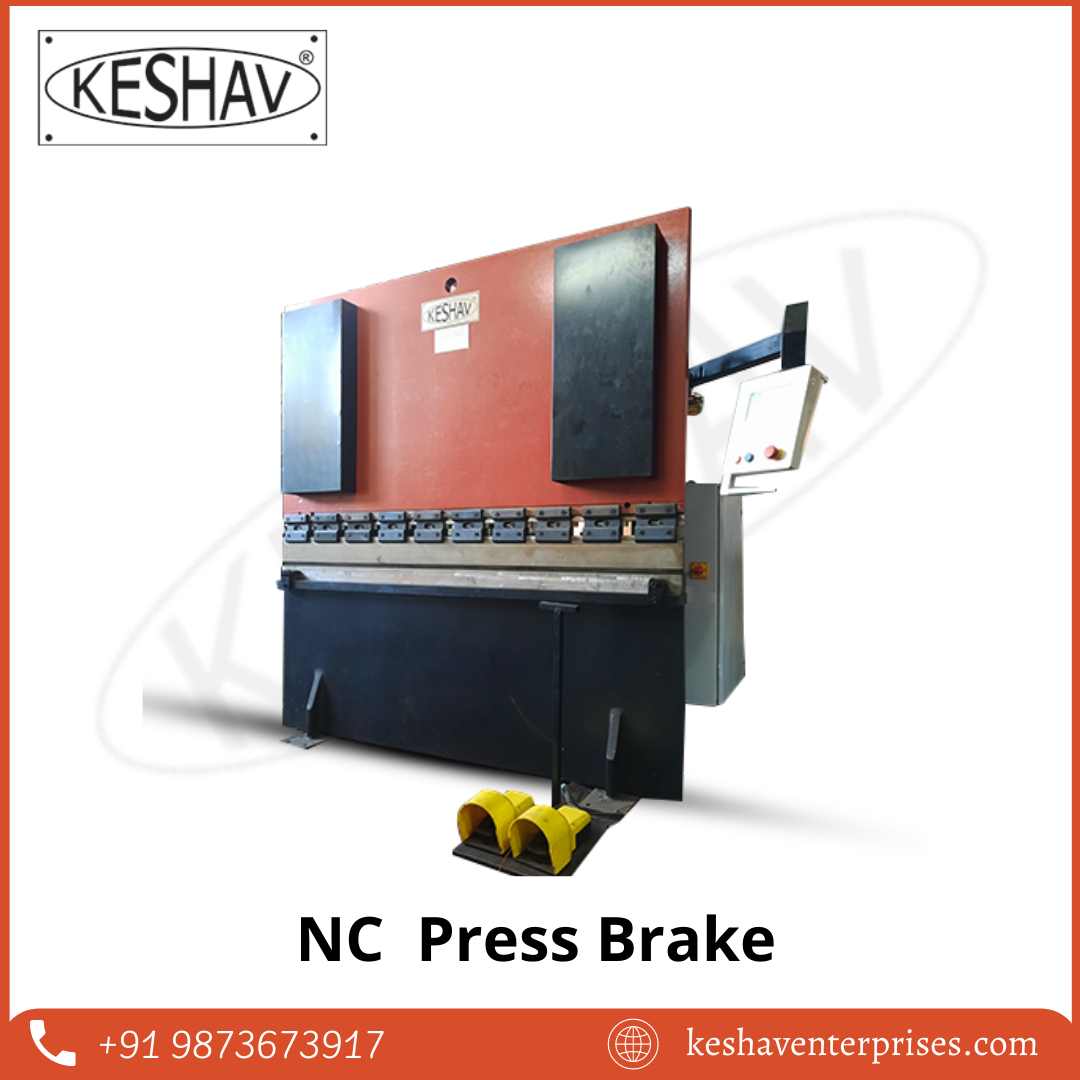

NC Press Brake

Product Description

The NC Press Brake is a high-performance metal bending machine built for precision and productivity. It features a robust H-frame structure, hydraulic power, and a CYBELEC controller from Switzerland. The machine supports advanced X and Y-axis control, enabling accurate back gauge positioning and bending angles with ±0.1mm accuracy. It offers fast setup, programmable operations, and can store up to 200 programs and 50 tool configurations, making it ideal for both batch and custom jobs.

NC System for X-Axis or X & Y-Axis

• Cybelec Controller

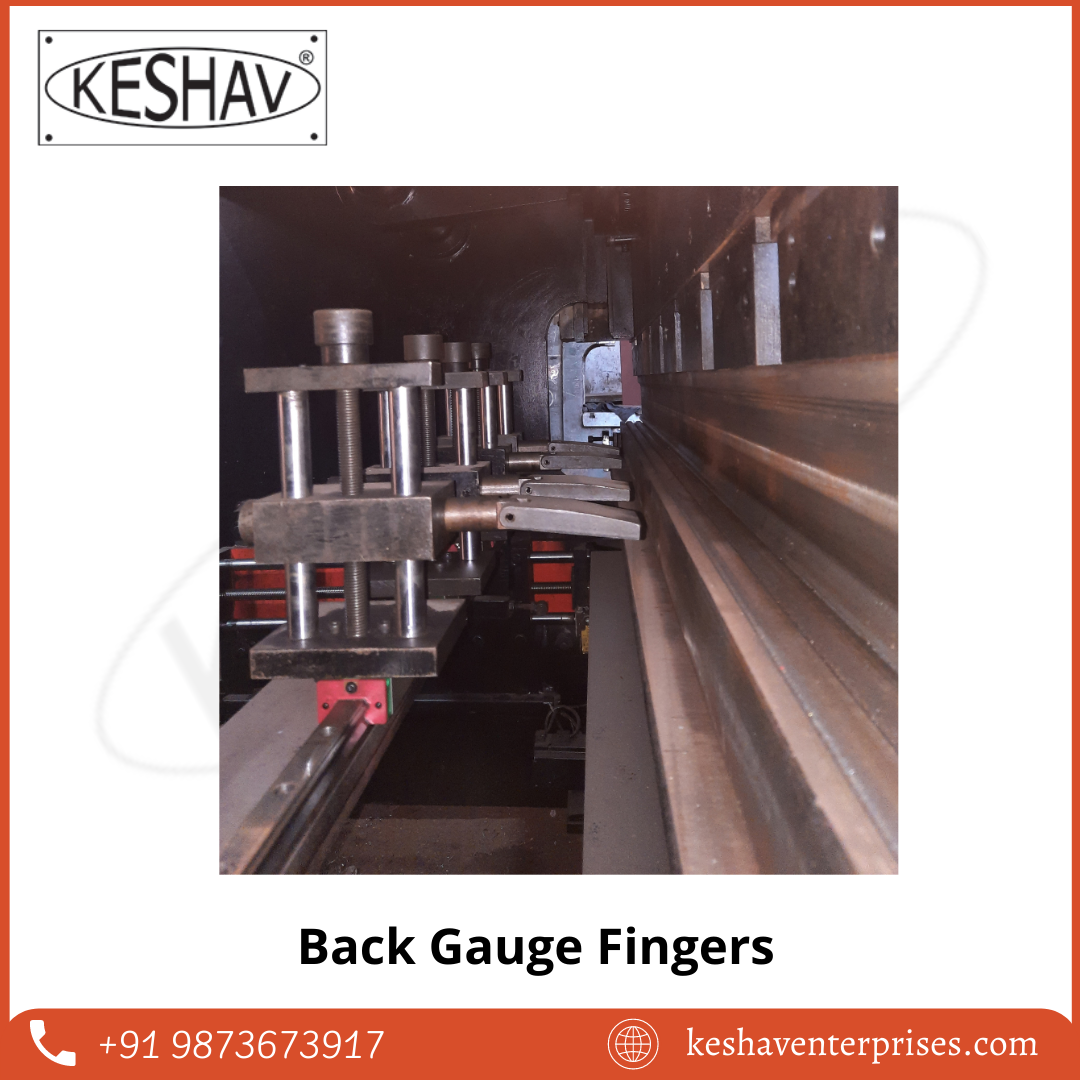

• Ball screw Backgauge & Servomotor
• Timing Belt – Pulley System

Advantages of NC System

• Touch screen Press Brake controller from CYBELEC Switzerland.
• Quick changeover for sample and mass production.
• High-speed back gauge movement by AC servo drive.
• Programmable angle correction & back gauge correction.
• User-friendly color touch screen for easy programming.
• Two-axis automatic control – Y-Axis (bending) & X-Axis (back gauge).
• Multiple bends with programmable back gauge positions.
• 200 programs & 24 bends with individual back gauge positions per program.

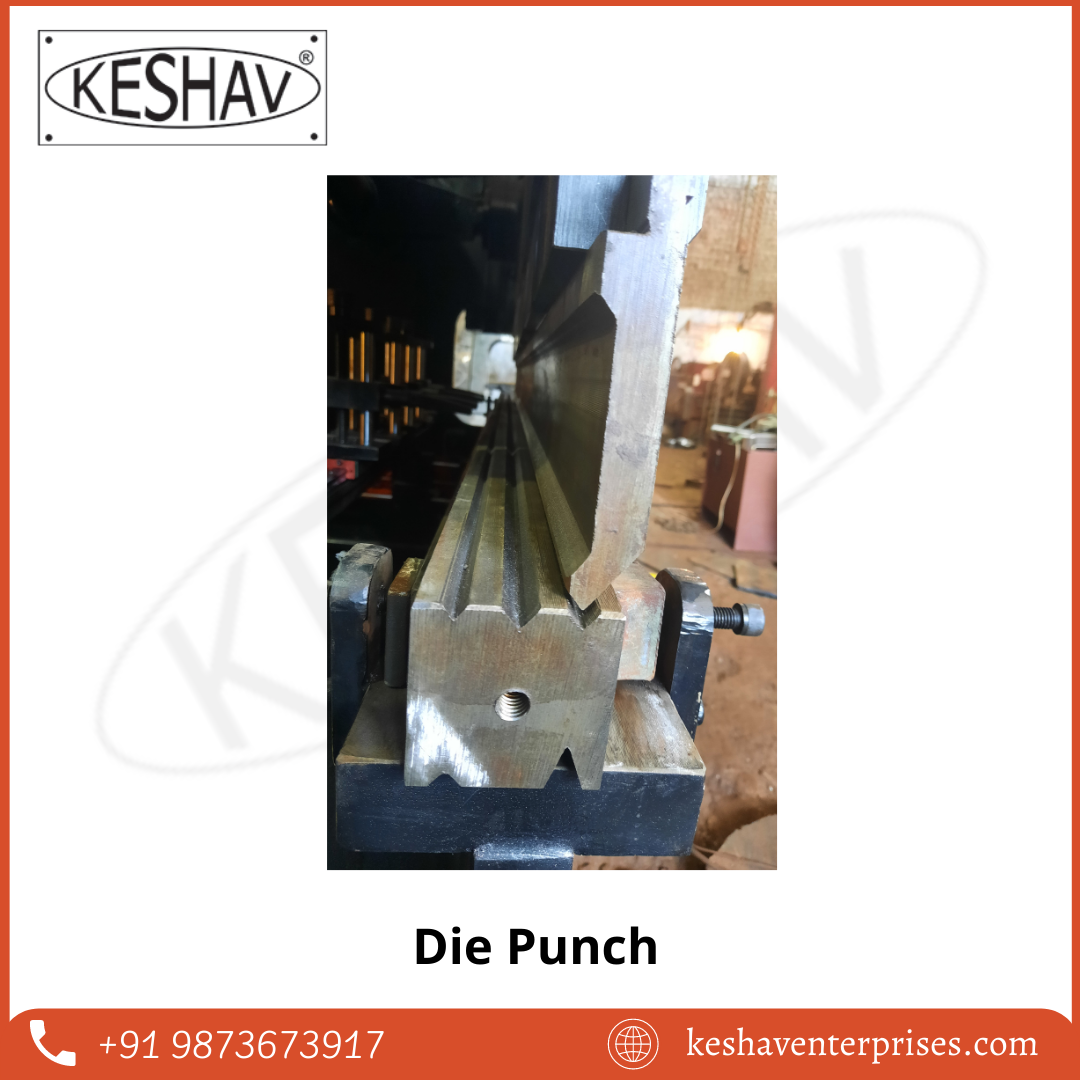

• Storage for 50 different punches and dies.
• ±0.1 mm back gauge positioning accuracy.
